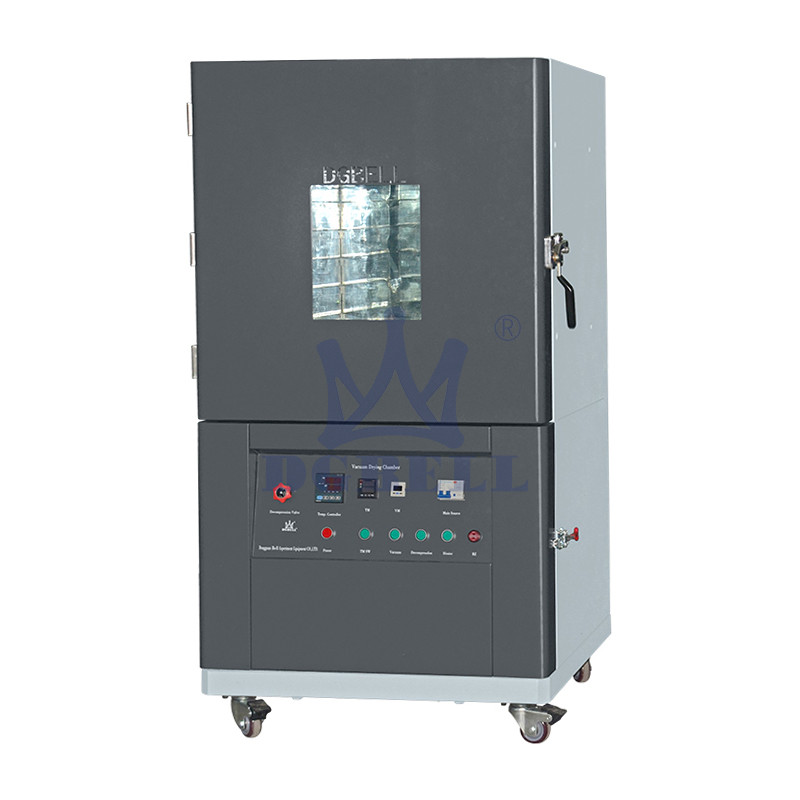

DGBELL Transformer Vacuum Drying Oven using 6.0mm Thick SUS 304 Stainless Steel

Name: DGBELL Transformer Vacuum Drying Oven using 60mm Thick SUS 304 Stainless Steel
Brand: DGBELL
Price: 1 USD

Brand Name : DGBELL

Model Number : BE-ZK-27L/BE-ZK-64L/BE-ZK-125L/BE-ZK-216L/BE-ZK-512L

Certification : CE/ISO

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : Western Union, T/T, D/P, D/A, L/C

Supply Ability : 500 Sets per Month

Delivery Time : Negotiation

Packaging Details : Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual inside.

Keywords : Vacuum Drying Oven Manufacturers

Temp. Range : RT+10ºC~200ºC

Display Mode : Digital Display

Internal Material : 6.0mm thickness SUS 304# Stainless Steel

External Material : 1.5mm thickness SECC steel plate, powder painted coating

Bottom : Installed with universal wheel

Observation Window : Tempered glass with explosion - proof membrane

Vacuum Rate : 1.3Kpa(standard requires 11.6Kpa,vacuum gauge indication value -89.7Kpa)

Contact Now

Transformer Vacuum Drying Oven Price

DGBELL Transformer Vacuum Drying Oven using 6.0mm Thick SUS 304 Stainless Steel

Vacuum Drying Oven Application

DGBELL's Vacuum Drying Oven is designed for drying powder, curing, sterilizing and many other applications which sensitive to heat and pressure. It provides an elevated temperature range from RT+10°C to 200°C when reducing environmental pressure.

Performance parameters

Model	BE-ZK-27L	BE-ZK-64L	BE-ZK-125L	BE-ZK-216L	BE-ZK-512L
Test Space	300x300x300	400x400x400	500x500x500	600x600x600	800x800x800
W x H x D (mm)
External Dimension	600x470x710	700x570x810	800x670x910	900x870x1010	1100x1070x1210
W x H x D (mm)
Power Supply	AC 220V / 50HZ / 3.0KW	AC 220V / 50HZ /4.0KW	AC 380V / 50HZ / 6.0KW	AC 380V / 50HZ / 8.0KW	AC 380V / 50HZ /10.0KW
Temp. Range	RT+10ºC~200ºC
Display Mode	Digital Display
Internal Material	6.0mm thickness SUS 304# Stainless Steel
External Material	1.5mm thickness SECC steel plate, powder painted coating
Bottom	Installed with universal wheel
Observation Window	Tempered glass with explosion - proof membrane
Timer	4 digits display 0~9999(Hour, Minutes, Seconds changeable)
Vacuum Rate	1.3Kpa(standard requires 11.6Kpa,vacuum gauge indication value -89.7Kpa)
Safety Devices	Remarks:as the inner chamber pressure is(101.325Kpa), if wants the inner chamber pressure decreased to 11.6Kpa. Calculating according to atmosphere pressure of(101.325Kpa), need to blow out (89.7Kpa) pressure of the inside chamber, then the inner chamber can reach low pressure environment of (11.6Kpa).
Pressure	0~101Kpa(Controllable, display)
Pressure Fluctuation	≤5%
